GEMO3DMonocular 3D Vehicle Detection with Deep-Learning Perception, Camera Geometry and Projection-Height Ratio Compensation

✦ CVGIP 2026 ✦Best Paper Candidate

Yu-Chiao Chang¹Chunghui Kuo²Chieh-Lun Yang¹Ing-Chau Chang¹

¹National Changhua University of Education²Rochester Institute of Technology

TL;DR GEMO3D turns a single RGB image into a 3D vehicle box by correcting pinhole depth with a class-specific rank-1 projection-height ratio model.

0.25 mmean 3D center error↓ 11% vs. next best

0.82mean BEV IoU↑ 17% vs. next best

31.12 FPSon an RTX 30602nd fastest of four

165 matched vehicle instances in CARLA evaluated by all four methods · next best: MonoDETR.

Abstract

Monocular 3D vehicle detection must infer depth from a single image. The height of a detected 2D box follows the visible silhouette, so it differs from the projected height of the vehicle’s 3D centerline — a bias that changes with viewing angle, distance and vehicle shape. GEMO3D combines deep-learning-based vehicle detection, vehicle-type classification and observation-angle estimation with camera geometry, and corrects this bias using a vehicle-type-conditioned rank-1 projection-height ratio model estimated from the viewing angle and initial pinhole depth. The corrected depth is back-projected into 3D, with the bottom-center position constrained by the road plane. The 3D bounding box is then reconstructed and further refined through reprojection consistency, without requiring ground-truth depth at inference.

Method

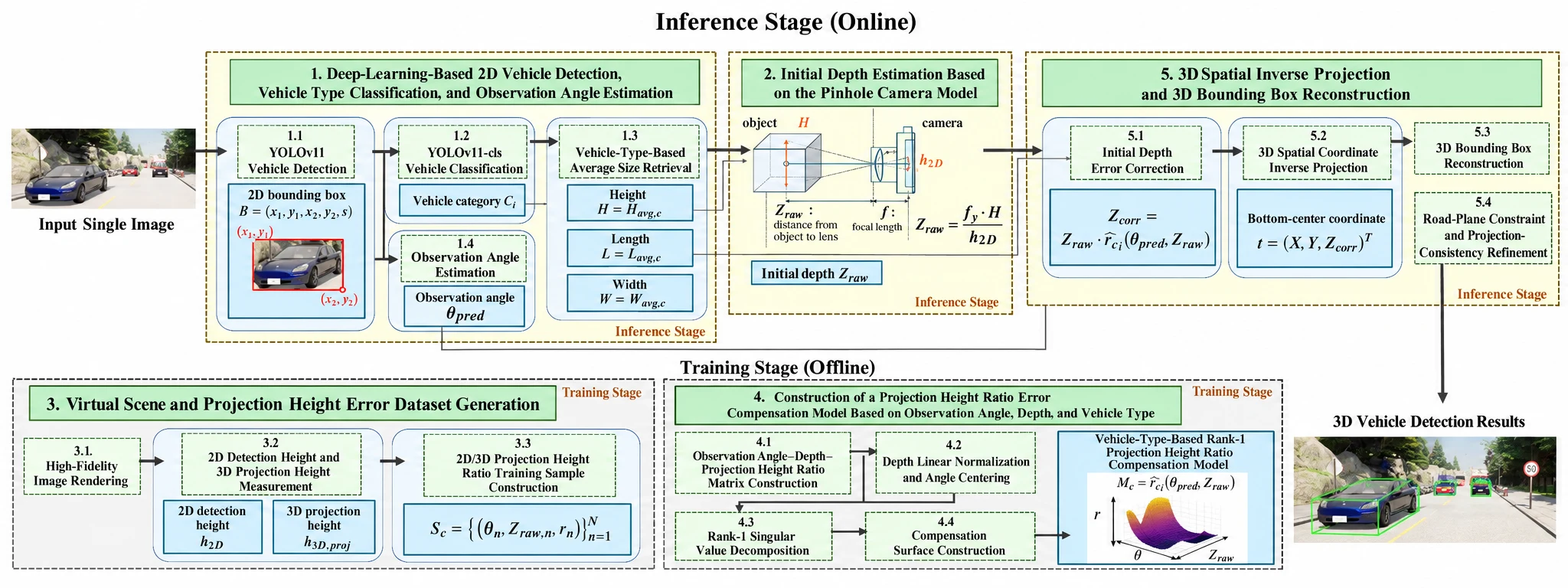

GEMO3D architecture showing the online inference and offline training stages — Online inference (top) and offline construction of the projection-height ratio model (bottom). Click to enlarge.

1Pinhole initialization

Z_raw = f_y H / h_2D

2Height-ratio correction

Z_corr = Z_raw · r_c(θ, Z_raw)

33D back-projection & reconstruction

Core contribution

Rank-1 Projection-Height Ratio Model

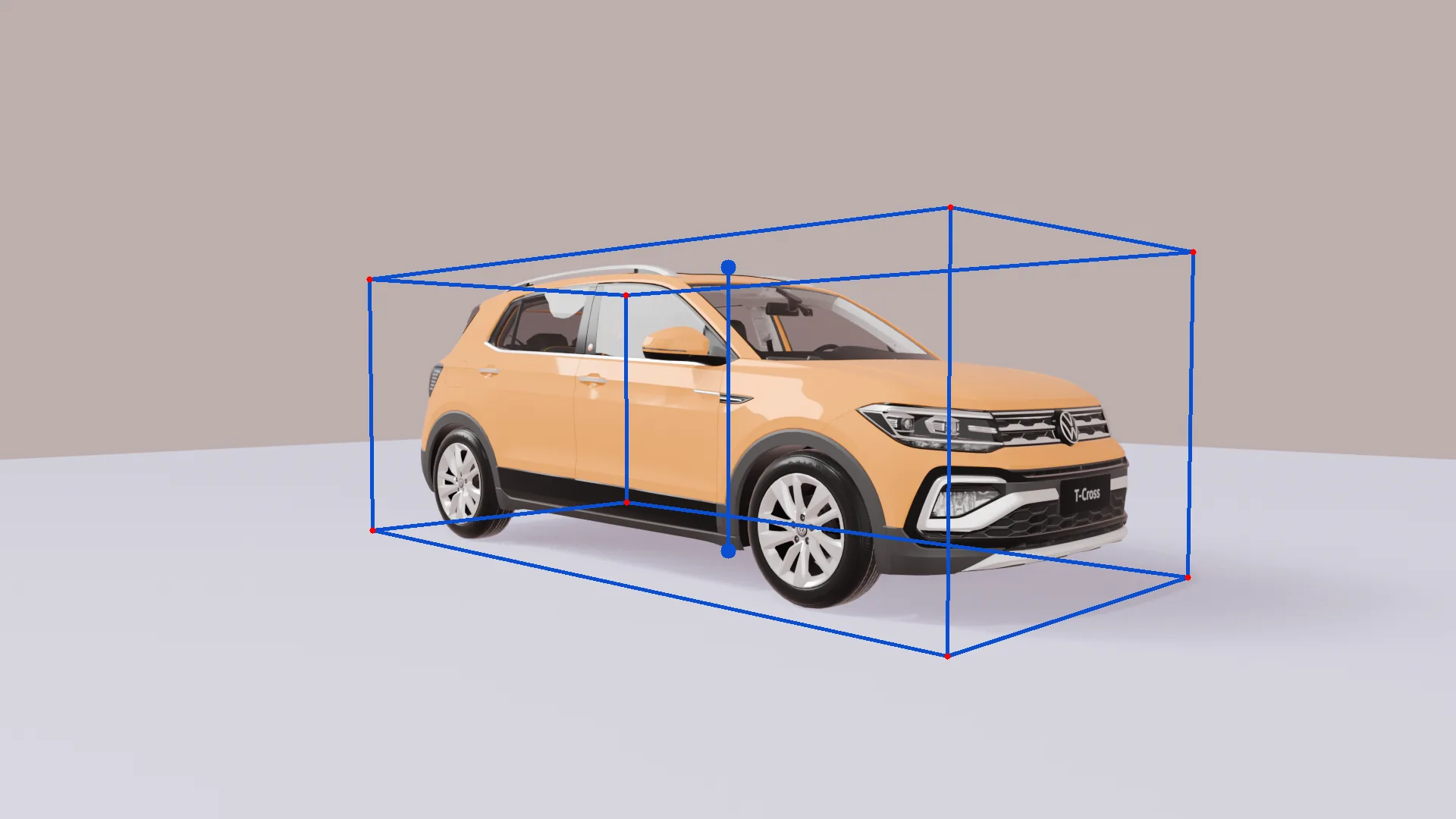

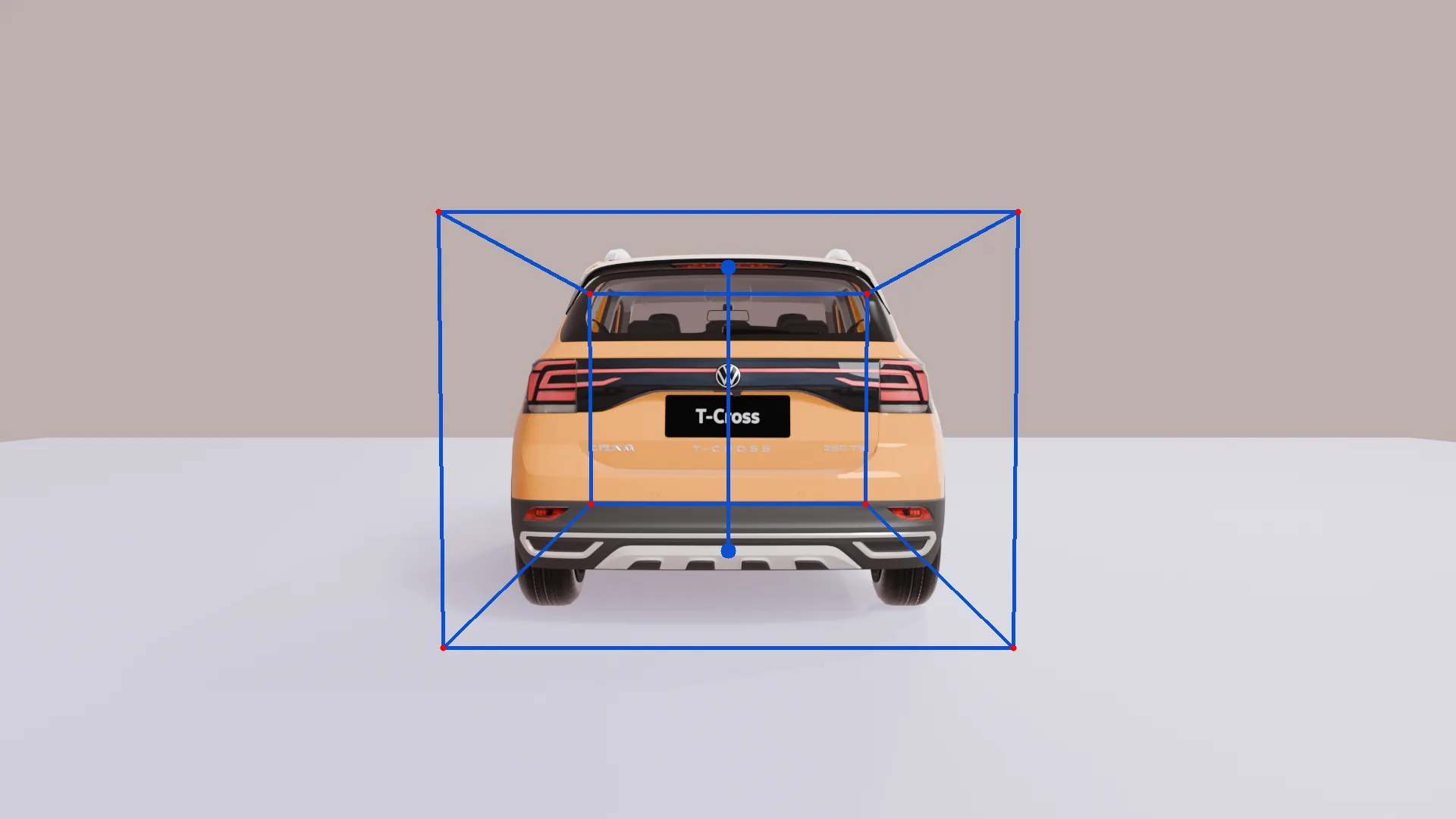

A 2D box follows the silhouette, so its height differs from the projected 3D centerline by a ratio r = h_2D / h_3D,proj that varies with viewing angle and depth. GEMO3D learns this ratio surface per vehicle class and compresses it with a rank-1 SVD.

Blender renders→ratio matrix R_c(θ, Z)→center per angle→rank-1 SVD ≈ σ₁u₁v₁^T

r_c(θ, Z) = b_c(θ) + a_c(θ) · C_c(ρ_c(Z))

angle baseline
angle amplitudeσ1u1
shared depth curvev1

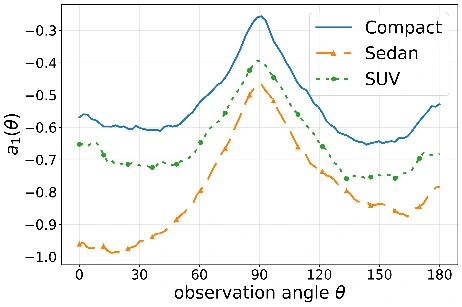

Angle amplitude a(theta) for three vehicle types — (a) a_c(θ)

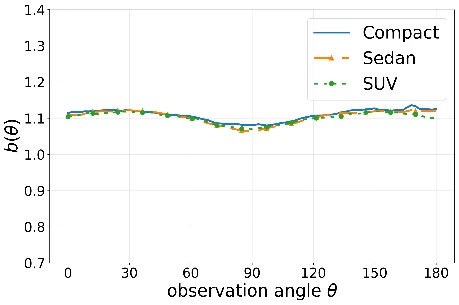

Angle baseline b(theta) for three vehicle types — (b) b_c(θ)

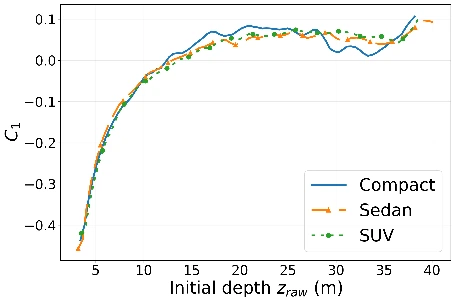

Shared depth basis C(rho(Z)) for three vehicle types — (c) C_c(ρ_c(Z))

> 95%energy kept by rank-1
Compact 95.11 · Sedan 98.55 · SUV 98.94

31-D curves per modeled vehicle class

100%synthetic data for the ratio model
Blender renders · no real-road 3D labels

Results

165 matched vehicle instances in a CARLA sequence, detected by GEMO3D, MonoAMNet, MonoDGP and MonoDETR.

Values from the CVGIP 2026 manuscript. FPS measured separately on 100 images (RTX 3060 12 GB). Best in bold.
Method	Mean depth bias (m) → 0	Depth RMSE (m) ↓	Yaw error (°) ↓	3D center error (m) ↓	BEV IoU ↑	FPS ↑
MonoAMNet	−2.29	5.58	18.97	2.76	0.46	40.23
MonoDGP	−1.22	1.40	1.23	1.25	0.46	24.71
MonoDETR	−0.02	0.33	1.73	0.28	0.70	21.34
GEMO3D ours	−0.06	0.27	2.12	0.25	0.82	31.12

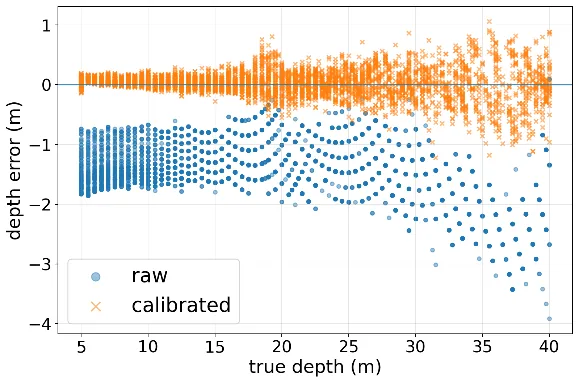

Depth error before and after compensation — Depth error, raw vs. compensated

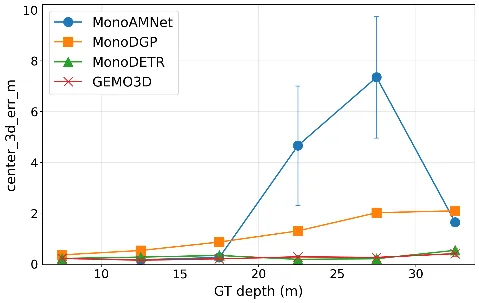

3D center error by depth for four methods — 3D center error by depth ↓

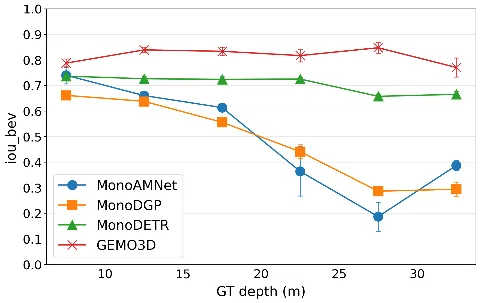

BEV IoU by depth for four methods — BEV IoU by depth ↑

Center-error and BEV IoU plots: mean per 5 m ground-truth depth bin (5–35 m); error bars show the 95% confidence interval.

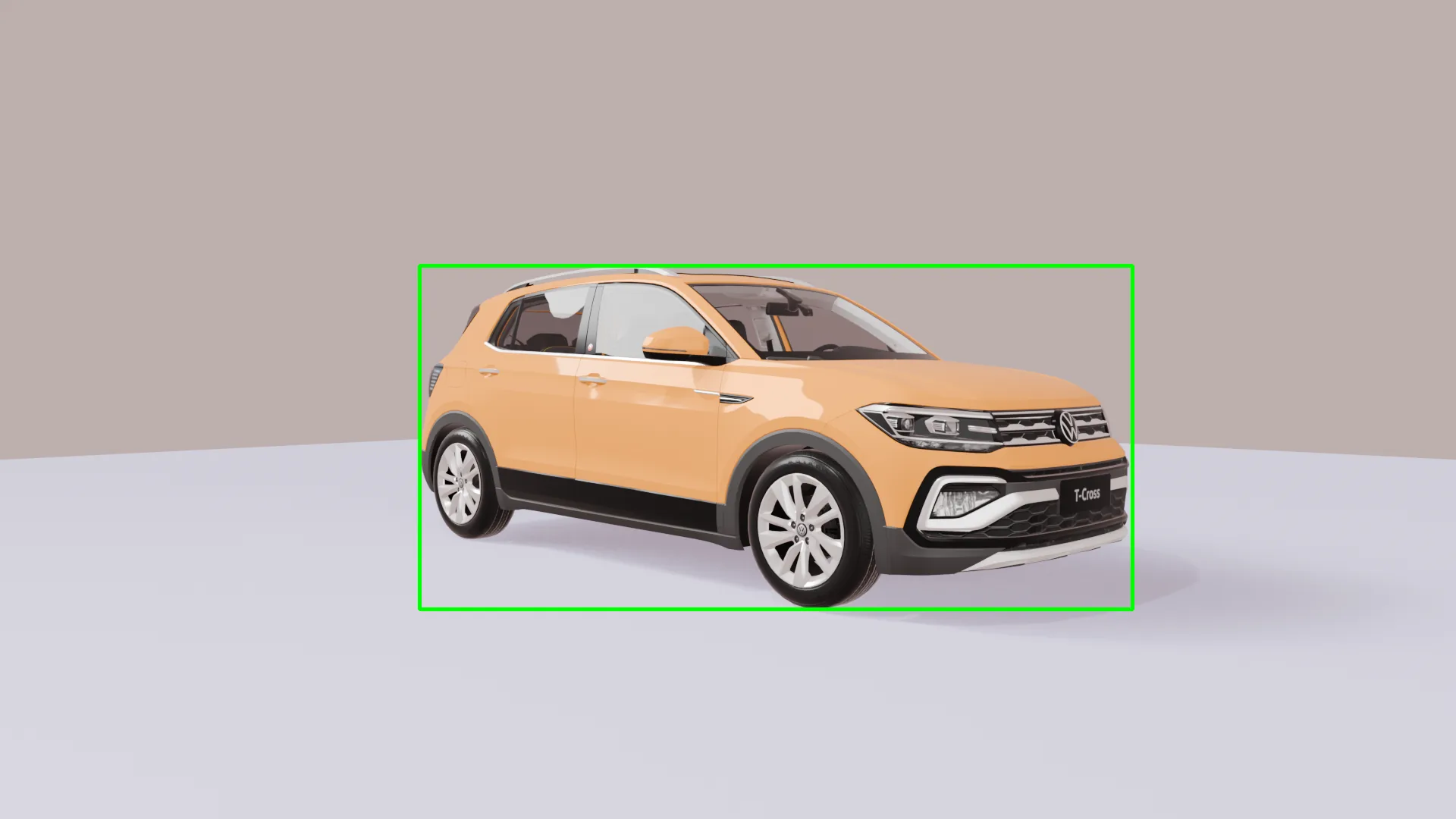

Vehicle with green YOLO 2D detection box

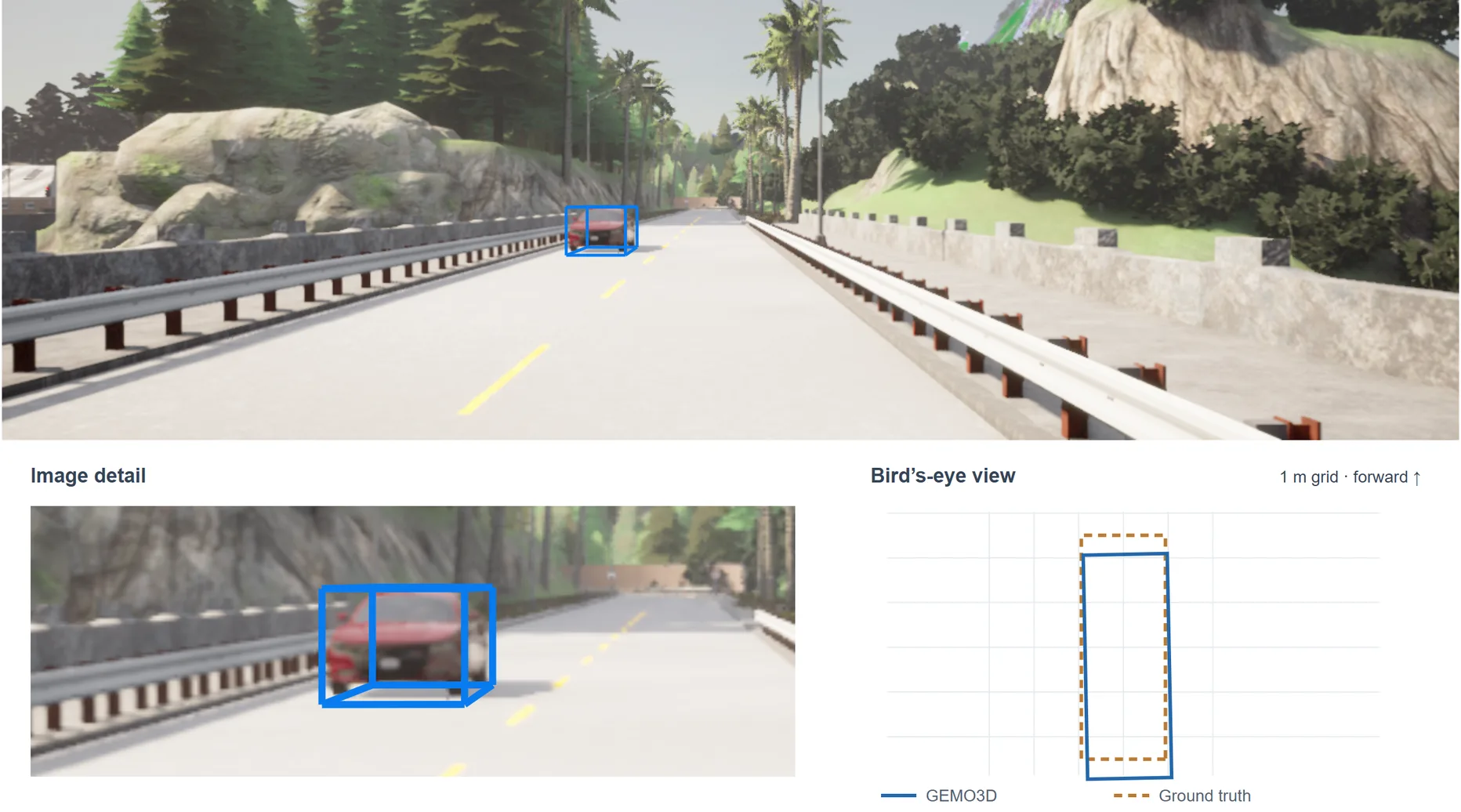

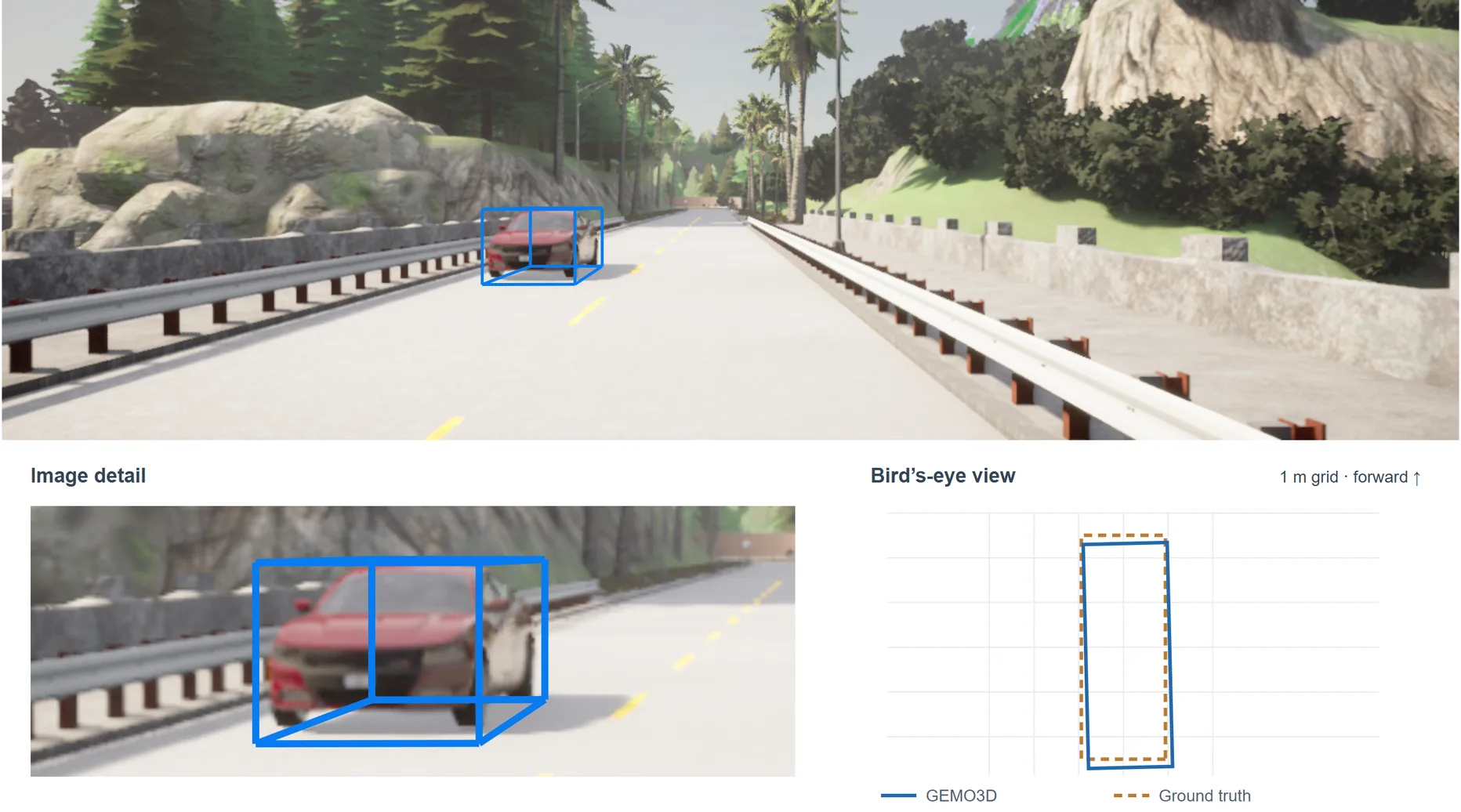

Predictions at 10, 20 and 30 m

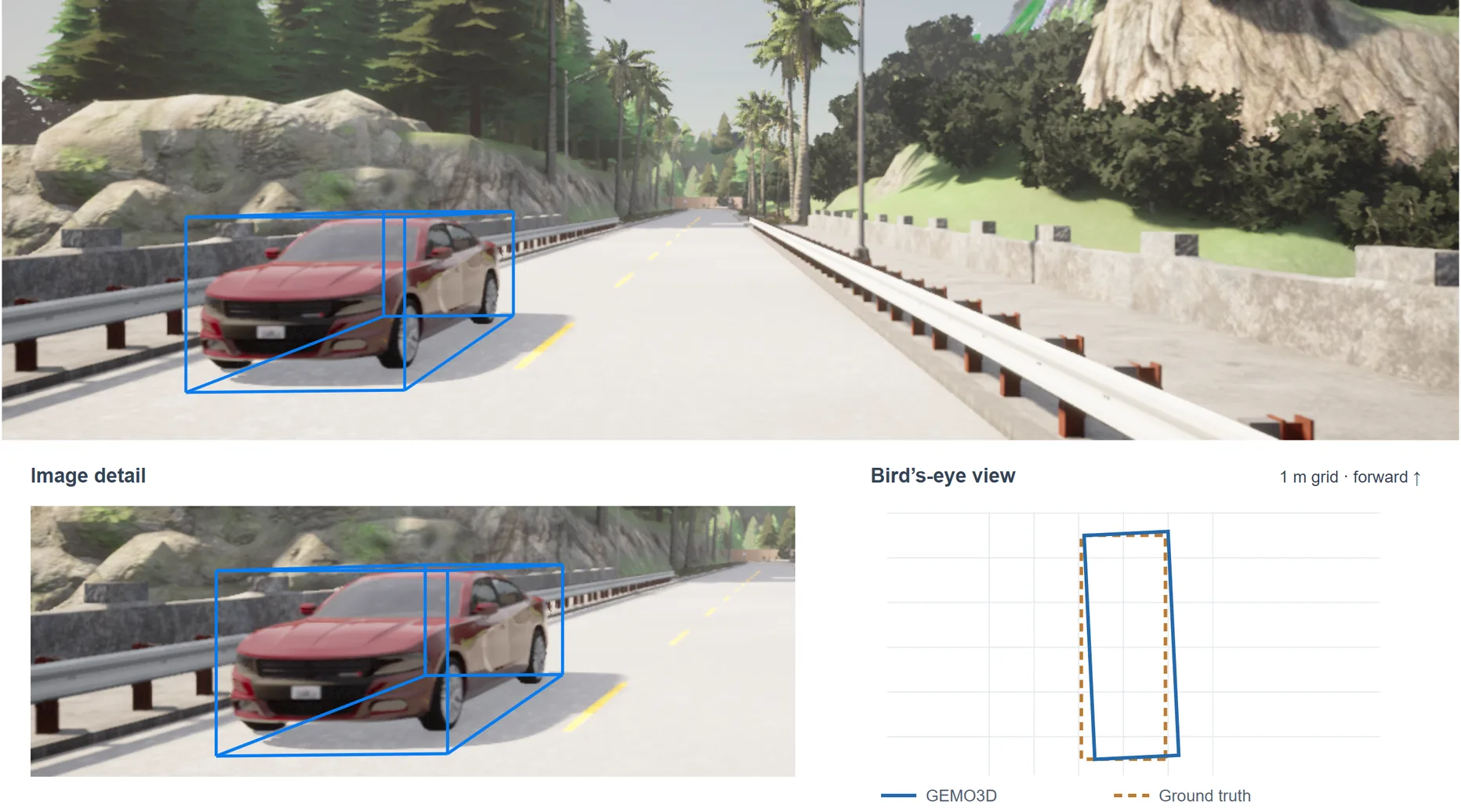

GEMO3D prediction example at 9.92 metres with an enlarged crop and bird’s-eye-view comparison — Frame 000151 · ground-truth depth 9.92 m

Blue: GEMO3D. Bird’s-eye view: orange dashed ground truth, 1 m grid. Examples are representative frames from the evaluation sequence.

Limitations. Evaluation covers a CARLA bidirectional-road scenario. Results depend on 2D box quality: severe occlusion, truncation or very small distant boxes can amplify depth errors, and vehicle-type misclassification propagates to the size prior and the ratio model. Future work will extend the model to more vehicle types, camera heights, pitch angles and road slopes.
